泰山派升级内存报错

置顶

精

活动

原来为1+0G版本，升级内存为D9ZCL,没有EMMC，TF卡烧录为1+0的Debian系统

上电时串口输出如下：

DDR Version V1.13 20220218
ln
ddrconfig:7
LP4 MR14:0x4d
LPDDR4, 324MHz
BW=32 Col=10 Bk=8 CS0 Row=17 CS1 Row=17 CS=2 Die BW=16 Size=8192MB
tdqss: cs0 dqs0: 409ps, dqs1: 337ps, dqs2: 3062ps, dqs3: 265ps,
tdqss: cs1 dqs0: 385ps, dqs1: 337ps, dqs2: 3062ps, dqs3: 289ps,

change to: 324MHz
PHY drv:clk:38,ca:38,DQ:30,odt:0
vrefinner:41%, vrefout:41%
dram drv:40,odt:0
clk skew:0x58
error cs 0 read training error
error cs 1 read training error

change to: 528MHz
PHY drv:clk:38,ca:38,DQ:30,odt:0
vrefinner:41%, vrefout:41%
dram drv:40,odt:0
clk skew:0xf0
error cs 0 read training error
error cs 1 read training error

change to: 780MHz
PHY drv:clk:38,ca:38,DQ:30,odt:0
vrefinner:41%, vrefout:41%
dram drv:40,odt:0
lowest freq may be too high!!!
clk skew:0xba
error cs 0 read training error
error cs 1 read training error

change to: 1056MHz(final freq)
PHY drv:clk:38,ca:38,DQ:30,odt:60
vrefinner:16%, vrefout:29%
dram drv:40,odt:80
vref_ca:00000068
lowest freq may be too high!!!
clk skew:0x80
cs 0:
the read training result:
DQS0:0x50, DQS1:0x52, DQS2:0x52, DQS3:0x55,
min  : 0x2  0x5  0x3  0x1  0x2  0x3  0x3  0x2 , 0x2  0x4  0x5  0x6  0x6  0x6  0x8  0x1 ,
       0x7  0x3 0x7f  0x3  0x7  0x5  0x1  0x7 , 0x5  0x6  0x8  0x1  0x8  0x6  0x8  0x8 ,
mid  :0x2d 0x2d 0x2e 0x2b 0x2d 0x2c 0x2e 0x2d ,0x2b 0x2c 0x2f 0x2d 0x2e 0x2f 0x31 0x29 ,
      0x30 0x2c 0x3f 0x2d 0x31 0x30 0x2c 0x31 ,0x2f 0x2c 0x32 0x2b 0x31 0x2f 0x33 0x30 ,
max  :0x59 0x56 0x59 0x55 0x59 0x55 0x5a 0x59 ,0x54 0x54 0x59 0x54 0x56 0x58 0x5a 0x52 ,
      0x5a 0x56  0x0 0x58 0x5b 0x5b 0x57 0x5b ,0x59 0x53 0x5d 0x55 0x5b 0x58 0x5e 0x59 ,
range:0x57 0x51 0x56 0x54 0x57 0x52 0x57 0x57 ,0x52 0x50 0x54 0x4e 0x50 0x52 0x52 0x51 ,
      0x53 0x53 0xffffff81 0x55 0x54 0x56 0x56 0x54 ,0x54 0x4d 0x55 0x54 0x53 0x52 0x56 0x51 ,
the write training result:
DQS0:0x91, DQS1:0x8e, DQS2:0xff, DQS3:0x8b,
min  :0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff ,0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff ,
      0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff ,0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff ,
mid  :0x7f 0x7f 0x7f 0x7f 0x7f 0x7f 0x7f 0x7f 0x7f ,0x7f 0x7f 0x7f 0x7f 0x7f 0x7f 0x7f 0x7f 0x7f ,
      0x7f 0x7f 0x7f 0x7f 0x7f 0x7f 0x7f 0x7f 0x7f ,0x7f 0x7f 0x7f 0x7f 0x7f 0x7f 0x7f 0x7f 0x7f ,
max  : 0x0  0x0  0x0  0x0  0x0  0x0  0x0  0x0  0x0 , 0x0  0x0  0x0  0x0  0x0  0x0  0x0  0x0  0x0 ,
       0x0  0x0  0x0  0x0  0x0  0x0  0x0  0x0  0x0 , 0x0  0x0  0x0  0x0  0x0  0x0  0x0  0x0  0x0 ,
range:0xffffff01 0xffffff01 0xffffff01 0xffffff01 0xffffff01 0xffffff01 0xffffff01 0xffffff01 0xffffff01 ,0xffffff01 0xffffff01 0xffffff01 0xffffff01 0xffffff01 0xffffff01 0xffffff01 0xffffff01 0xffffff01 ,
      0xffffff01 0xffffff01 0xffffff01 0xffffff01 0xffffff01 0xffffff01 0xffffff01 0xffffff01 0xffffff01 ,0xffffff01 0xffffff01 0xffffff01 0xffffff01 0xffffff01 0xffffff01 0xffffff01 0xffffff01 0xffffff01 ,
cs 1:
the read training result:
DQS0:0x50, DQS1:0x52, DQS2:0x52, DQS3:0x55,
min  : 0x2  0x5  0x3  0x1  0x2  0x3  0x3  0x2 , 0x2  0x4  0x5  0x6  0x6  0x6  0x8  0x1 ,
       0x7  0x3 0x7f  0x3  0x7  0x5  0x1  0x7 , 0x5  0x6  0x8  0x1  0x8  0x6  0x8  0x8 ,
mid  :0x2d 0x2d 0x2e 0x2b 0x2d 0x2c 0x2e 0x2d ,0x2b 0x2c 0x2f 0x2d 0x2e 0x2f 0x31 0x29 ,
      0x30 0x2c 0x3f 0x2d 0x31 0x30 0x2c 0x31 ,0x2f 0x2c 0x32 0x2b 0x31 0x2f 0x33 0x30 ,
max  :0x59 0x56 0x59 0x55 0x59 0x55 0x5a 0x59 ,0x54 0x54 0x59 0x54 0x56 0x58 0x5a 0x52 ,
      0x5a 0x56  0x0 0x58 0x5b 0x5b 0x57 0x5b ,0x59 0x53 0x5d 0x55 0x5b 0x58 0x5e 0x59 ,
range:0x57 0x51 0x56 0x54 0x57 0x52 0x57 0x57 ,0x52 0x50 0x54 0x4e 0x50 0x52 0x52 0x51 ,
      0x53 0x53 0xffffff81 0x55 0x54 0x56 0x56 0x54 ,0x54 0x4d 0x55 0x54 0x53 0x52 0x56 0x51 ,
the write training result:
DQS0:0x91, DQS1:0x8e, DQS2:0xff, DQS3:0x8b,
min  :0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff ,0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff ,
      0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff ,0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff 0xff ,
mid  :0x7f 0x7f 0x7f 0x7f 0x7f 0x7f 0x7f 0x7f 0x7f ,0x7f 0x7f 0x7f 0x7f 0x7f 0x7f 0x7f 0x7f 0x7f ,
      0x7f 0x7f 0x7f 0x7f 0x7f 0x7f 0x7f 0x7f 0x7f ,0x7f 0x7f 0x7f 0x7f 0x7f 0x7f 0x7f 0x7f 0x7f ,
max  : 0x0  0x0  0x0  0x0  0x0  0x0  0x0  0x0  0x0 , 0x0  0x0  0x0  0x0  0x0  0x0  0x0  0x0  0x0 ,
       0x0  0x0  0x0  0x0  0x0  0x0  0x0  0x0  0x0 , 0x0  0x0  0x0  0x0  0x0  0x0  0x0  0x0  0x0 ,
range:0xffffff01 0xffffff01 0xffffff01 0xffffff01 0xffffff01 0xffffff01 0xffffff01 0xffffff01 0xffffff01 ,0xffffff01 0xffffff01 0xffffff01 0xffffff01 0xffffff01 0xffffff01 0xffffff01 0xffffff01 0xffffff01 ,
      0xffffff01 0xffffff01 0xffffff01 0xffffff01 0xffffff01 0xffffff01 0xffffff01 0xffffff01 0xffffff01 ,0xffffff01 0xffffff01 0xffffff01 0xffffff01 0xffffff01 0xffffff01 0xffffff01 0xffffff01 0xffffff01 ,
CA Training result:
cs:0 min  :0xb5 0xbc  0x0  0x0 0xb3  0x0 0x24 ,0xb5 0xb8  0x0  0x0 0xb1  0x0 0x24 ,
cs:0 mid  :0xda 0xdd 0x7f 0x7f 0xd9 0x7f 0x23 ,0xda 0xdb 0x7f 0x7f 0xd8 0x7f 0x23 ,
cs:0 max  :0xff 0xff 0xff 0xff 0xff 0xff 0x22 ,0xff 0xff 0xff 0xff 0xff 0xff 0x22 ,
cs:0 range:0x4a 0x43 0xff 0xff 0x4c 0xff 0xfffffffe ,0x4a 0x47 0xff 0xff 0x4e 0xff 0xfffffffe ,
cs:1 min  : 0x0  0x0 0xb4 0xb7  0x0 0xb8 0x24 , 0x0  0x0 0xb2 0xb6  0x0 0xb4 0x24 ,
cs:1 mid  :0x7f 0x7f 0xd9 0xdb 0x7f 0xdb 0x23 ,0x7f 0x7f 0xd8 0xda 0x7f 0xd9 0x23 ,
cs:1 max  :0xff 0xff 0xff 0xff 0xff 0xff 0x22 ,0xff 0xff 0xff 0xff 0xff 0xff 0x22 ,
cs:1 range:0xff 0xff 0x4b 0x48 0xff 0x47 0xfffffffe ,0xff 0xff 0x4d 0x49 0xff 0x4b 0xfffffffe ,
out

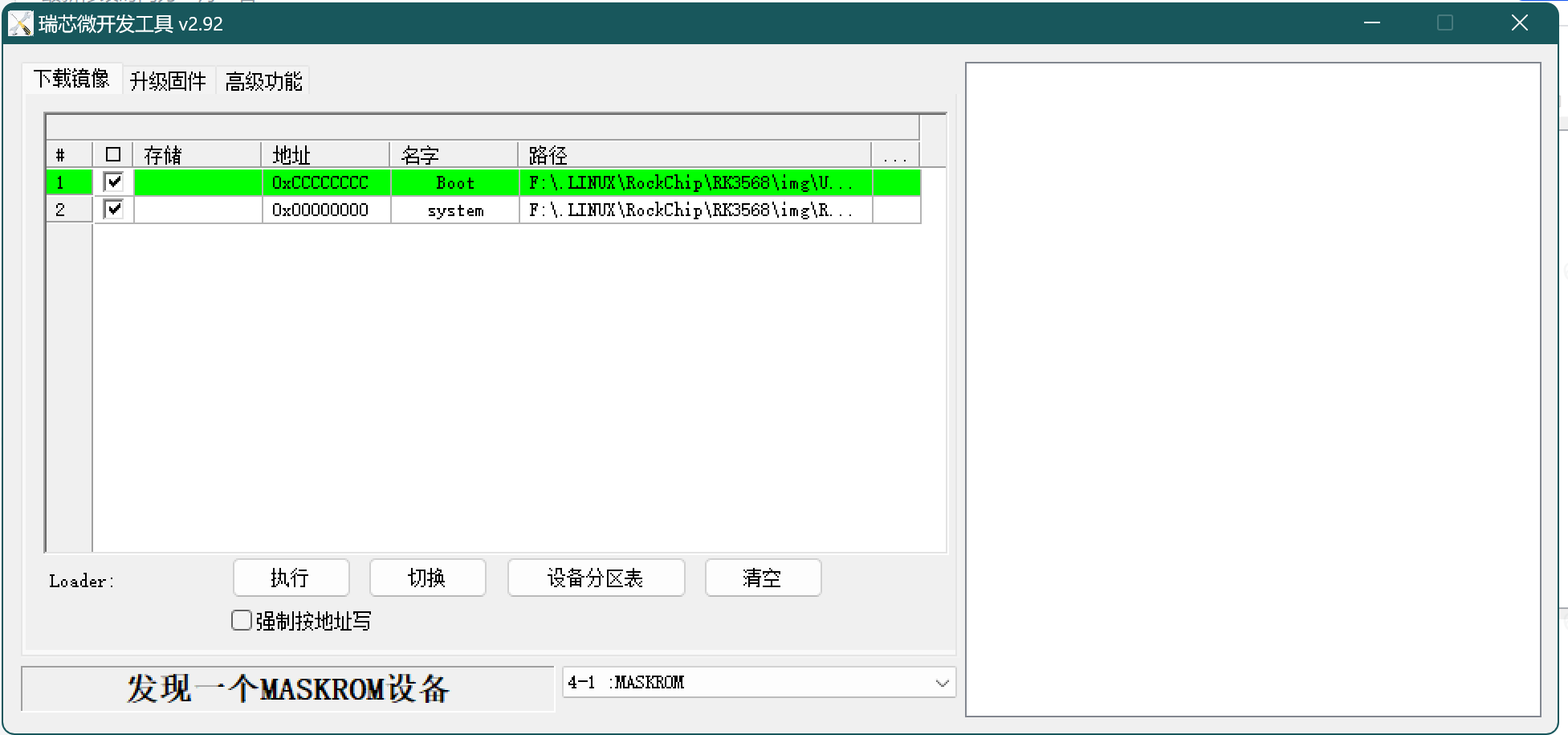

开发工具能发现一个设备

这是没有内存焊好？还是其它原因？
